The panel can be equipped to most (especially newer) XP lathes and all 2024, Galaxi, Saturn lathes and newer.  All DVR products with 8.xx firmware are also compatible (such as 53101 DVR upgrade motors and Voyager/Vulcan Drill Presses).


To check your firmware version, see the following FAQ:


https://teknatool.freshdesk.com/solution/articles/19000052578-technical-questions-about-dvr-

or

https://teknatool.freshdesk.com/solution/articles/19000049006-voyager-version-information

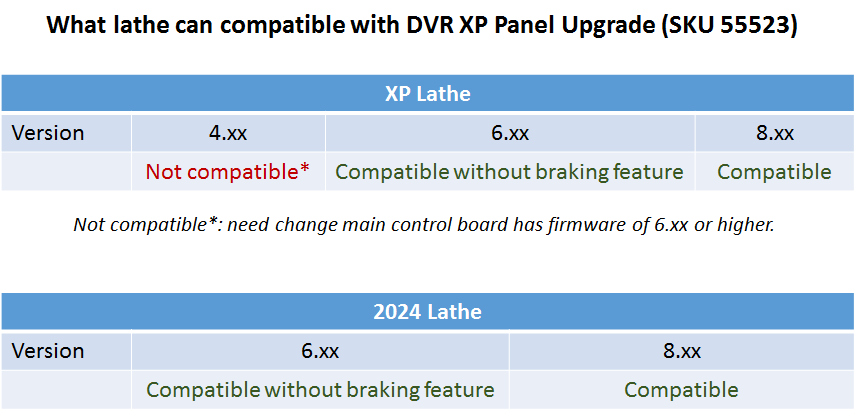

DVR 3000  - Same firmware compatibility as the DVR XP.


XP lathes have version 4.xx, 6.xx and 8.xx, This panel is compatible with version 6.xx and 8.xx only, version 4.xx has only been partially tested and it does not perform a lot of the functions such as fwd/rev on it.


2024  The oldest version 6.xx, and the newest one is 8.xx, so all 2024 are compatible.


As for the features:

All 6.xx and 8.xx main boards with the retrofit kit will have the following features:

-remote enabled

-speed chart

-10 favorite speeds (5 additional speeds for XP users,  same amount for 2024 users)

-double pressing to access favorite speed #6 to #10

-5000 speed limit (normal speed limit for XP is 3500, same speed limit for 2024 users)

-USB upgrade capabilities

-speed knob


Features which are also only enabled on version 8.xx main boards:

-electronic braking
