SAFETY WARNING


Safety glasses must be worn when dealing with snap rings on the chucks. Snap rings can for fly off in any direction. Use caution and wear safety glasses.



Ø Note: Remove jaws or any other accessories attached on the chucks before disassembling the chucks. Wipe/blow off visible dust from the chucks before disassembly.



Preparation:

Before starting the disassembly, lay a disposable thick towel or cloth on top of the working area as the disassembly process can get messy. The towel will protect the chuck body during this process.





This guide outlines the disassembly, cleaning and reassembly for:



  • Precision Midi
  • G3
  • SuperNOVA2
  • Titan



 NOVA G3 Chuck – Disassembly





Tools Required:

  1. External Circlip Pliers
  2. Disposable Rag



STEPS

DESCRIPTION


1.

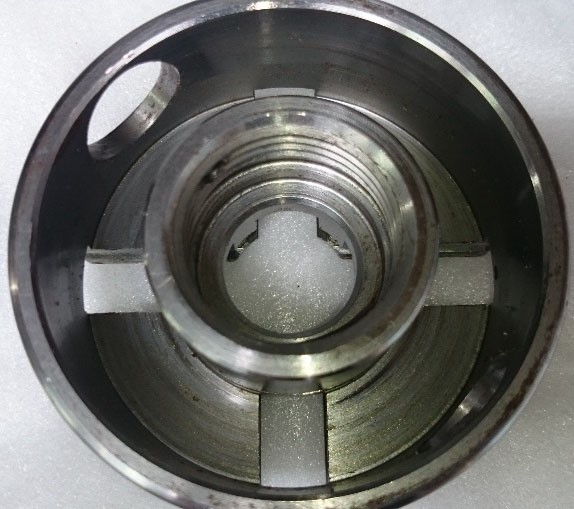

Lay the chuck face down. The jaw slides can be at any position.

2.

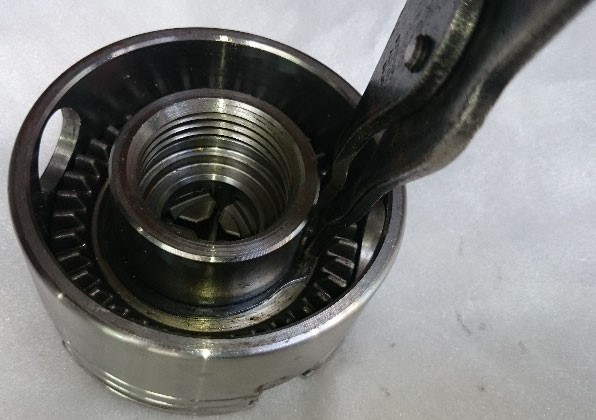

Use the external snap ring plier to remove the retaining ring as shown in the image.



WARNING: Use extreme caution when with circlips. Wear safety glasses for this procedure.



3.

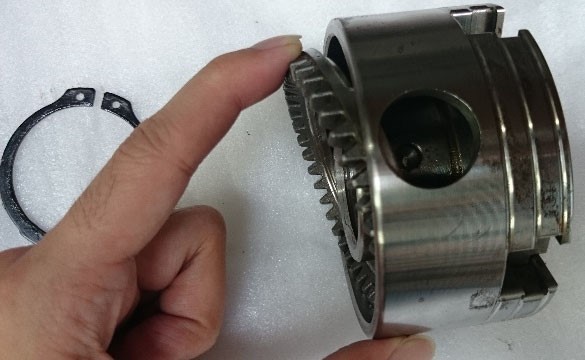

Once the retaining ring is removed, the scroll ring can be removed from the chuck body. Tip the chuck body over and the scroll ring should fall out from the body.




STEPS

DESCRIPTION


4.



After removing the scroll ring, the jaw slides will release.



Before sliding the jaw slides out, mark with a permanent marker since each jaw slide will have a corresponding slideway to it. #1 jaw slide fit where there is a dimple.



Remove the jaw slides out from the body by sliding it outwards.



5.



Make sure you have all parts:

  1. Chuck Body
  2. Scroll Ring
  3. Retaining ring (EC48)
  4. Jaw Slides 1, 2, 3, 4







NOVA G3 Chuck – Cleaning



After the chuck has been disassembled, each individual part can be cleaned out to remove any debris and excessive rust. Check for any defects on the parts at this stage (e.g. cracks, chips, deformation, etc).





STEPS

DESCRIPTION


1.



Use a disposable cloth/ towel to wipe off much of the visible dirt as possible on each part.



Procedure should be carried out on all  main parts of the chuck (i.e. scroll ring, jaw slides and chuck body).



2.



To remove built up grime, apply a degreaser/rust remover (e.g. WD40) on each part. Leave on for at least two hours (or as directed on product instructions).



3.

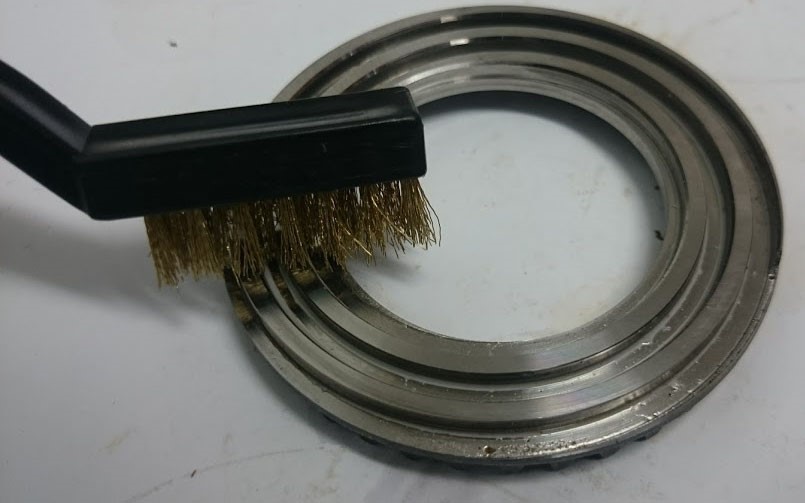

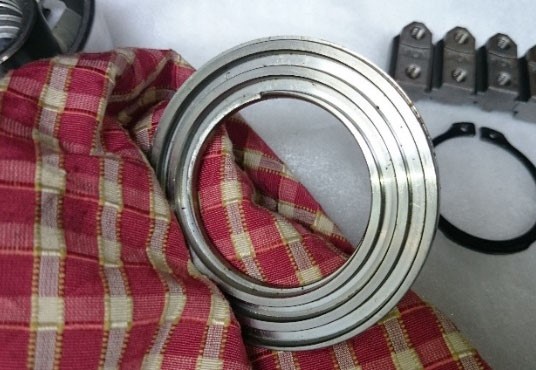

Use a wired brush to remove the rust and grime.



Make sure to run the brush in between the slits of the scroll ring and jaw slides to get to the hard to clean areas.



4.

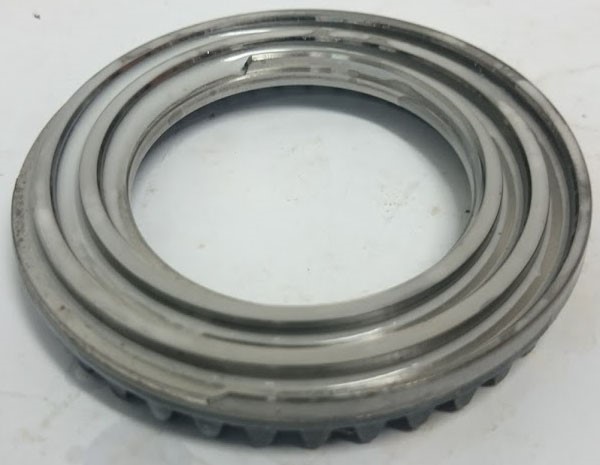

Use a clean disposable cloth/ towel to wipe the part after brushing.



The parts should feel dry and shouldn’t leave any sticky residue on your fingers.





NOVA G3 Chuck – Reassembly



Once all the parts are cleaned and free of any debris on the surface, the chuck can be reassembled. Before assembling the chuck back together, check for any defects. If there is a visible defect (e.g. cracks, chips, deformation etc) please contact our customer service at service@teknatool.com





STEPS

DESCRIPTION


1.















Before reassembling the chuck, apply a generous amount of lubricant to all surfaces that come in contact with other parts.





We recommend applying the lubricant (before assembly) on the inner surface of the chuck body as well as the jaw slide slots . Be sure to apply lubricant on both spiral teeth and gear teeth sides.





2.







Reinsert the jaw slides back into its original slots. Looking from the front, the jaw slide number should be counting up from #1 in the clockwise direction.




STEPS

DESCRIPTION


3.

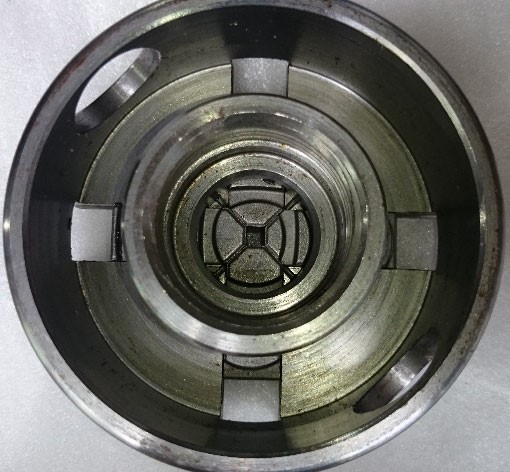

Place the jaw slides in the center, forming a small square in the middle.



Flip the chuck face down (make sure the jaw slides do not move). If the jaw slide moves, adjust it to form the square in the center.



4.

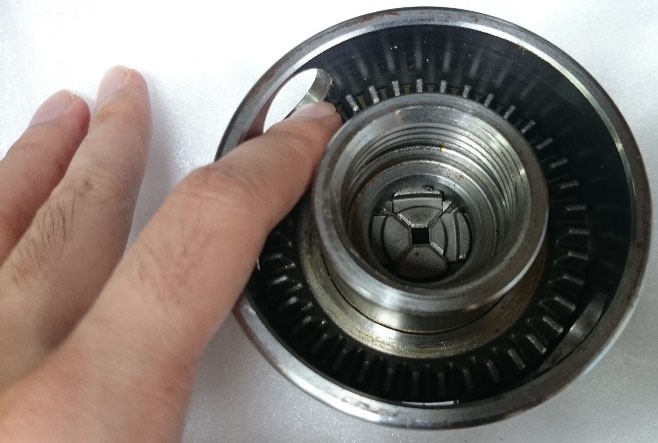

Slide the scroll ring back into the chuck body. Once in place, rotate the scroll ring until it engages with the jaw slides.



You should feel the scroll rings engage as it drops into place, exposing the slot where the snap ring will fit. Alternatively, you will see the jaw slides moving by rotating the scroll ring when it engages.



5.

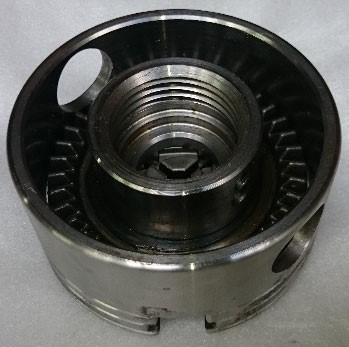

To check wither the jaw slides correctly match up with the center, rotate the scroll ring with the chuck.



If the jaw slides match up at the center by forming a square, place the snap ring back on to complete the assembly process.



 Chucks Parts List



SKU

Thread Size

PARTS LIST


SKU 48111

Precision Midi

Direct Thread



1” x 8 TPI



1.

          48100

Chuck Body

2.

48116

Scroll Ring

3.

23051

23052

23053

23054

Jaw Slides

4.

EC48

36mm External

Circlip


SKU 48232  G3 Direct Thread

1” x 8 TPI



1.

  1. (Insert)
  2. (Direct)

Chuck Body

2.

23082

Scroll Ring

3.

23051

23052

23053

23054

Jaw Slides

4.

EC48

External Circlip


SKU 48202   G3 Insert Type

M38 x 3.5


SKU 23062

SuperNOVA2

Direct Thread

1 ¼” x 8tpi



1.

23049 (Insert)  23061 (M33)

Chuck Body




2.

23048

Back Cover


3.

23082

Scroll Ring


4.

23051

23052

23053

23054

Jaw Slide #1~#4


SKU 23055

SuperNOVA2

Insert Type

M38 X3.5


5.

23081

Pinion Gear


6.

EC48

External Circlip





SKU 13060 –

Titan III

Direct Thread

1 ¼” x 8tpi



1.

  1. (Normal)
  2. (Europe)

Chuck Body




2.

13003

Back Cover


3.

13035

Scroll Ring


4.

1339011

1339012

1339013

1339014

Jaw Slide #1~#4


SKU 13061 –

Titan III

Europe Version Direct Thread

M33 x 3.5


5.

13036

Pinion Gear


6.

EC48

External Circlip


7.

13004

Fastening Screw


8.

LSM4N

Position Screw
