NOTE: The 14DR Controller has multiple revisions. Please see the wiring diagrams below to determine the style you have

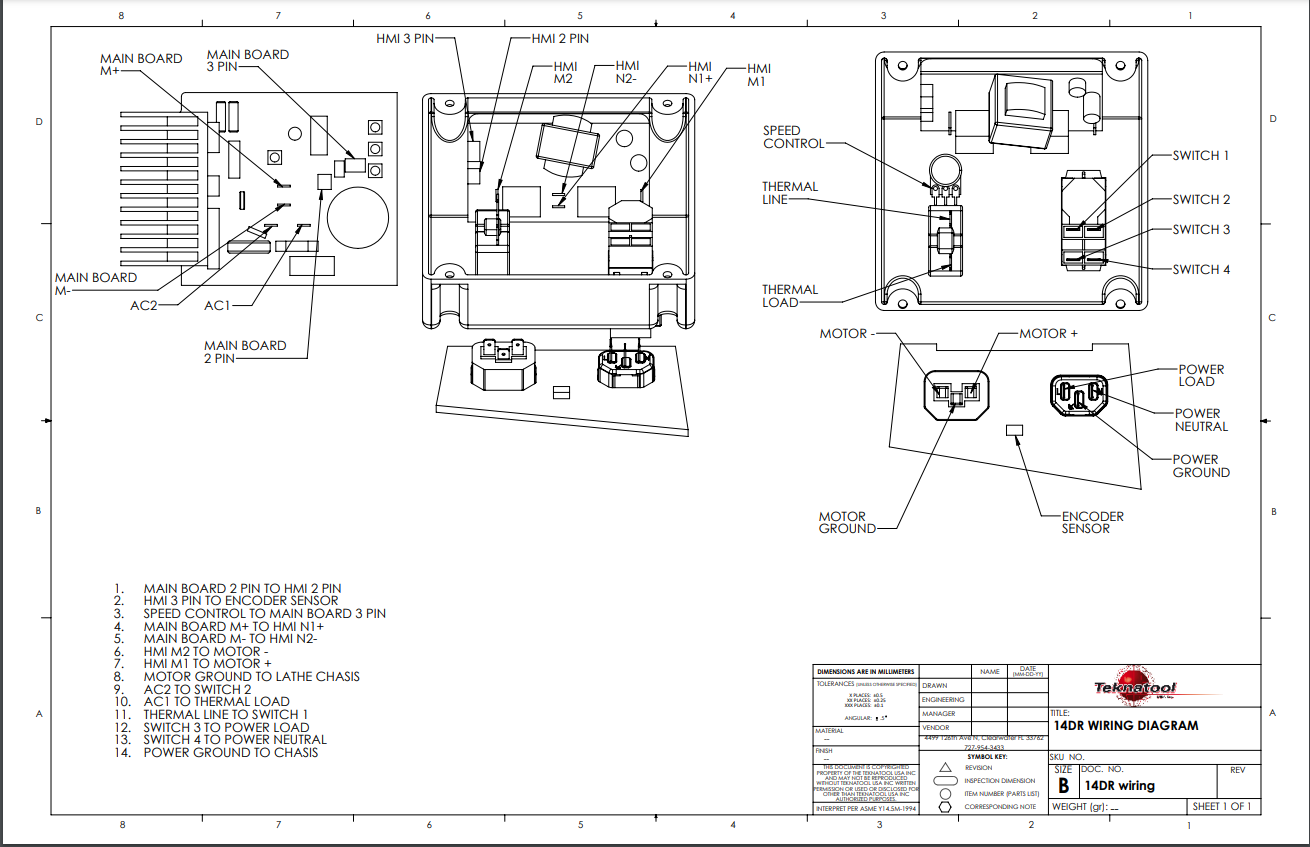

Original: Yellow Board
New: Green Board
Comet 14 DR wiring diagram Print
