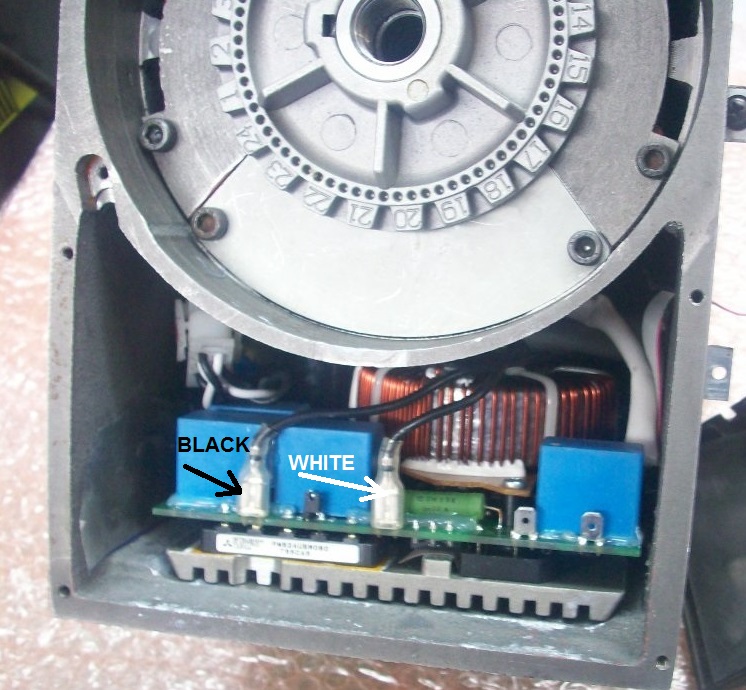

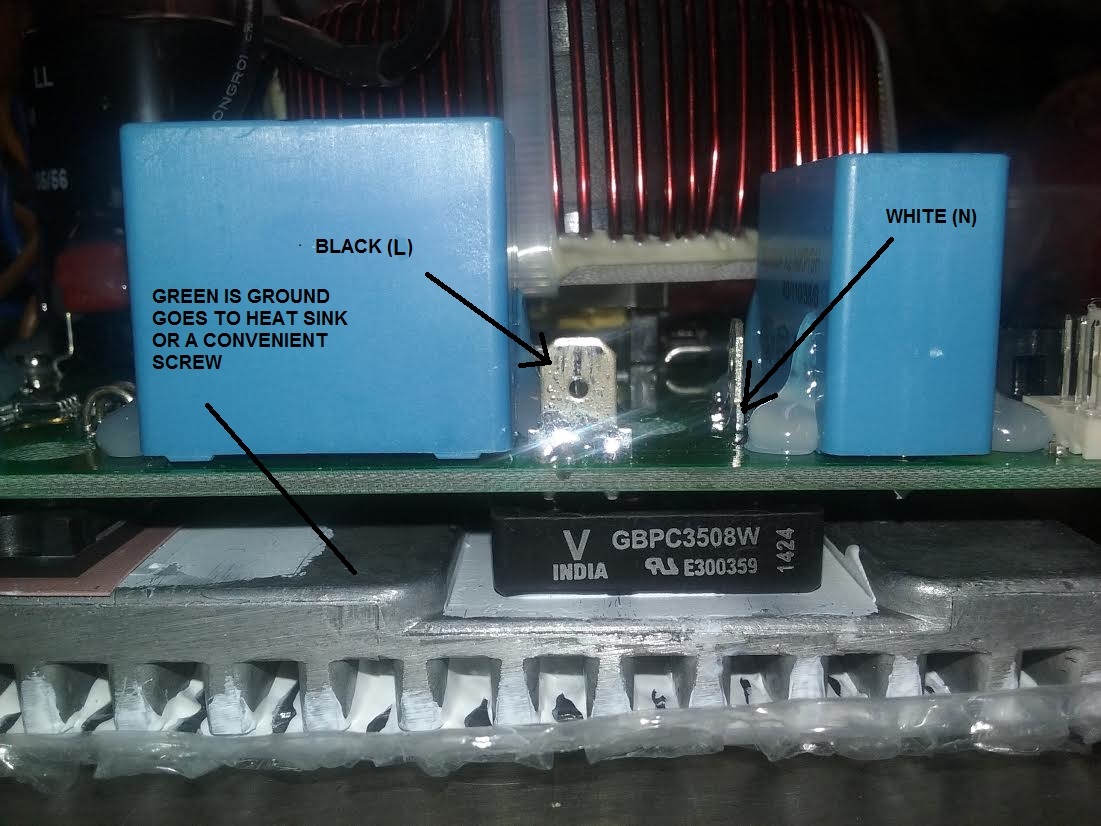

Black left, white right. Here are the two most common configurations. The board near the black connection is marked 'L" Live. The white is marked N" for neutral.
DVR 55168 MAIN BOARD POWER CXN Print
