How to Remove the Detent Pin on the NOVA 1624 II lathe : Teknatool International

How can we help you today?

Modified on: Sun, 15 Jul, 2018 at 3:29 PM

The detent pin is the part which allows the user to lock the headstock in place when engaged.

This part can become damaged for various reasons. If the headstock is not locking into place it may be a issue associated with the detent pin.

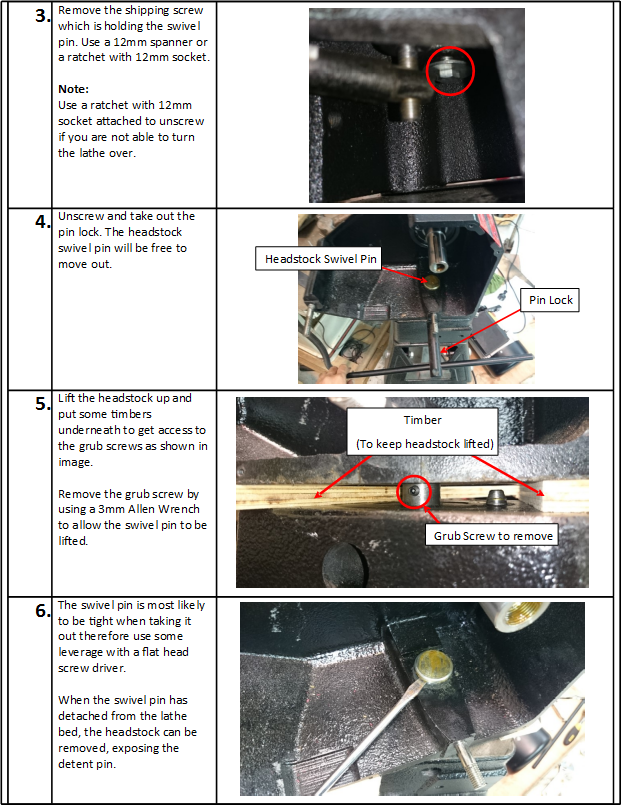

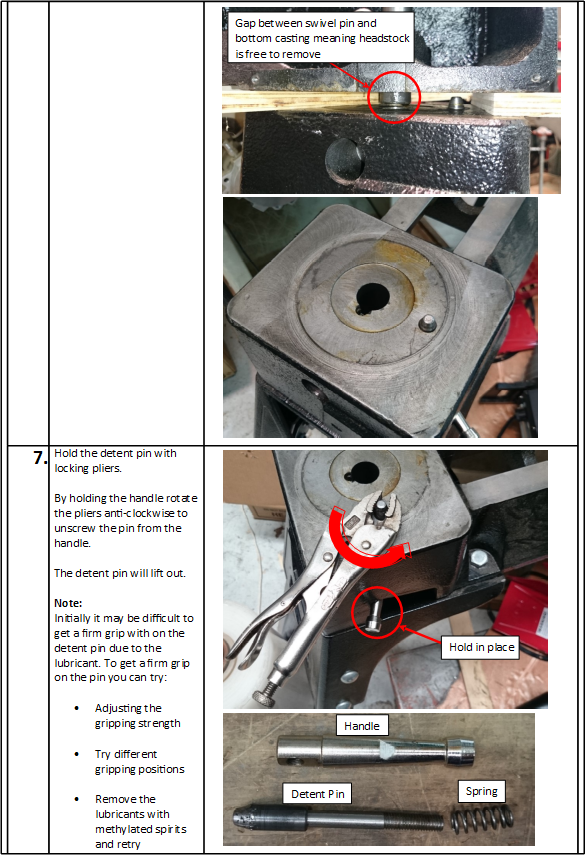

This article shows the procedures on how to remove the detent pin under the headstock of the NOVA 1624 II woodlathe.

pdf

(1.9 MB)

Did you find it helpful? Yes No
