Modified on: Fri, 18 Jan, 2019 at 10:57 AM

Plug the 4 pin USB cable into the X5 port in the top right of the interface board on the back

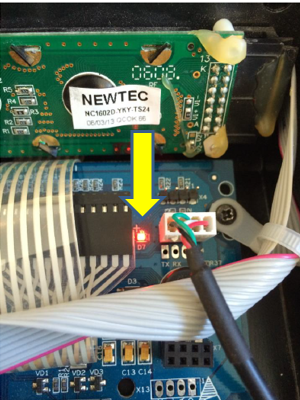

on the triangular user interface panel. IMPORTANT NOTE: Note the position of the red cable as shown in the photo below:

Is this light illuminated?

If so, great...if not, service is required. Send an email to SERVICE@TEKNATOOL.COM with full details to the issue.
