Error Code

Description / More Info

MCB not connected

Entering USB Mode

MCB stands for Motor Control Board (or Main Control Board).

This error occurs when the HMI user control panel cannot communicate with the control board.

Possible causes are:

• Loose 10 pin ribbon cable - please check the connectors on the control board or behind the HMI
• Only HMI is powered up - When connecting the machine through USB for firmware upgrade purposes, only the control panel is powered up. The HMI will automatically enter USB mode for user convenience
• Damaged ribbon cable/hardware – Check the boards for any damage. May require servicing.

Brakes Enabled

Secure Set Screw to avoid Injury

The start up warning when the Braking function is ENABLED.

This is a reminder to use the set screw on the chuck/insert to prevent the workpiece from unwinding from the machine.

To clear the warning, press any key except the OFF button

Factory Reset

Turn Power OFF

The factory reset has been activated and settings are restored to the default.

Please turn OFF the main power switch on the machine and let the machine discharge for 5mins before powering back on.

Excessive Vibrations     Detected

Some DVR machines are equipped with a vibration sensor. When the error appears, it means that the vibration detected is above the threshold set.

To clear the warning, press any key except the OFF button

To DISABLE the vibration sensor, enter the settings menu and set the “Vibration Sensor” to OFF

Load Spike Detected

The Voyager drill press has a load sensor which can monitor the load on the motor. The load spike detection can be used to detect sudden increases in load when drilling.

The spike threshold checks the Load (%) change as the drill is running.

To clear the warning, press any key except the OFF button

To change the load detection threshold, enter the Configuration > Drill Settings > Load Sensor and set the “Spike Threshold”

To DISABLE the load spike sensor, enter the Configuration > Drill Settings > Load Sensor and set the “Spike Detect” to OFF

Idle Motor Detected

Newer DVR Lathes include an idle sensor, which can automatically turn off the motor when no cutting has been detected.

This feature can be used to turn off the machine when it has been accidently left running while the user is away.

To clear the warning, press any key except the OFF button

To DISABLE the idle motor detection, enter the Menu > Lathe Settings and set the “Idle=AutoStop” to OFF

Low Voltage

Low voltage warning occurs when power is lost on the Motor Control Board.

Possible cause are:

• Main power switch has been turned off
• The fuse has blown
• Motor control board power electronics – Please search for other FAQ for “low voltage” for each individual machine.

RPS Error 1

Rotor Position Sensor

The RPS (Rotor Position Sensor) provides feedback to the MCB to control the speed and power of the machine. A faulty sensor may lead to the motor not running correctly.

RPS Error 1 indicates one or more of the 3 position sensors incorrectly reporting output “1”.

Possible causes are:

• Dust obstructing one of the sensors
• Connector issue on the 5 pin ribbon cable – Check the cable is not damaged
• A fault in the sensor itself – Please replace the sensor

RPS Error 0

Rotor Position Sensor

The RPS (Rotor Position Sensor) provides feedback to the MCB to control the speed and power of the machine. A faulty sensor may lead to the motor not running correctly.

RPS Error 1 indicates one or more of the 3 position sensors incorrectly reporting output “0”.

Possible causes are:

• 5 pin sensor cable disconnected – Check the cable is connected
• A fault in the sensor itself – Please replace the sensor

EEPROM DATA FLT

EEPROM DATA CLR

These effort occur briefly on some older DVR machines (typically DVR XP, 3000, and 2024) after a factory reset.

This is normal after behaviour a factory reset.

Hardware Fault

Hardware fault occurs when components on the Motor Control Board report a fault code.

If the control board is repeatedly showing this error, the Motor Control Board (MCB) may need to be serviced or replaced.

SRM not Rotate

This error occurs when the control board is not able to turn on the motor.

Possible cause are:

• Check the large 6 pin connector to the motor
• Possible obstruction for the motor – check if the locking pin is disengaged and the spindle is able to spin freely

Invent. Overheat

There is an overheating issue possibly with the Motor Control Board. May require servicing

PFC Fault

There is an error in the PFC power circuit. May require servicing

Unexpected Fault

Miscellaneous error codes.

Unexpected Trap

Description

More Info

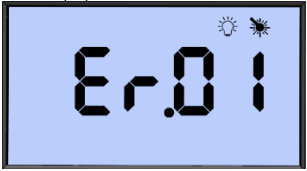

01

Over Voltage

Over voltage detected and operations have stopped to protect the Main Control Board.

02

Over Current

Over current detected and operations have stopped to protect the Main Control Board.

03

Motor running too fast

The motor may be running too fast due to software or external issues. Please check firmware.

04

Motor not starting

The motor is not able to start.

Please check the motor 6 pin connector.

Release any locking pin or spindle lock for the machine.

05

Rotor Position Error

An error has occurred relating to the RPS sensor.

Please clean any dust or obstruction on the RPS sensor.

Check that the RPS cable connector is correctly plugged in.

RPS Sensor may need to be replaced.

06

Motor too hot

The motor may be overheating or running too hot.

Please check motor.

07

The Motor Control Board may be overheating and may require servicing or repairs.
