The Rotor Position Test is a very important way to check your DVR motor's condition.

Before going into the Rotor position test, You need enter the Service mode first.

Refer to FAQs : How to enter Service Mode and Check serial no. & parameter on DVR XP lathe.

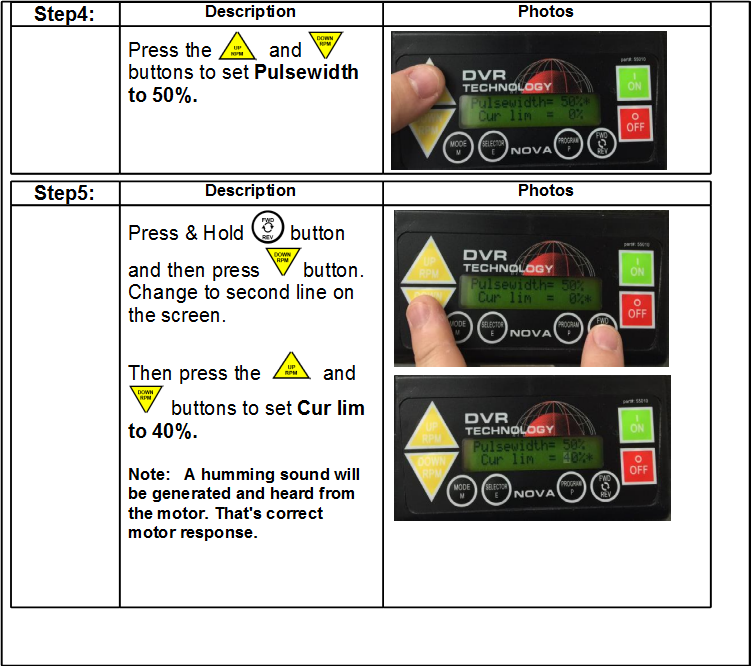

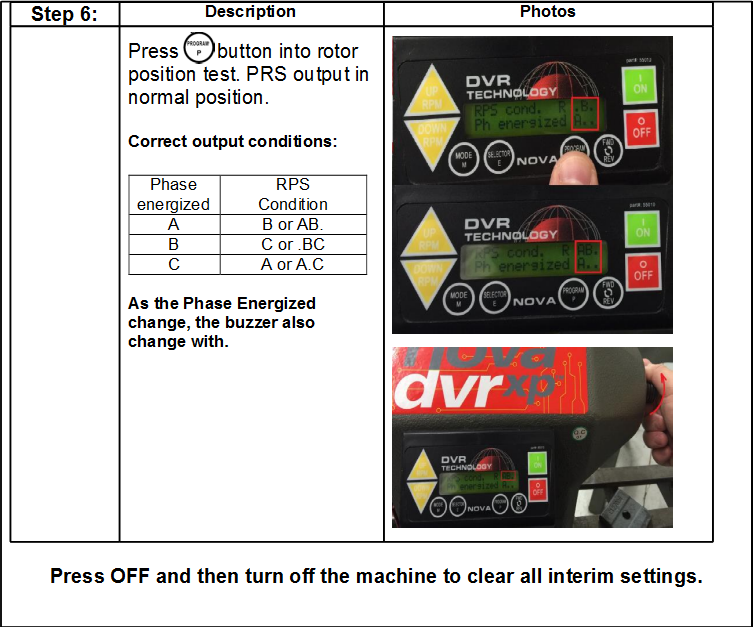

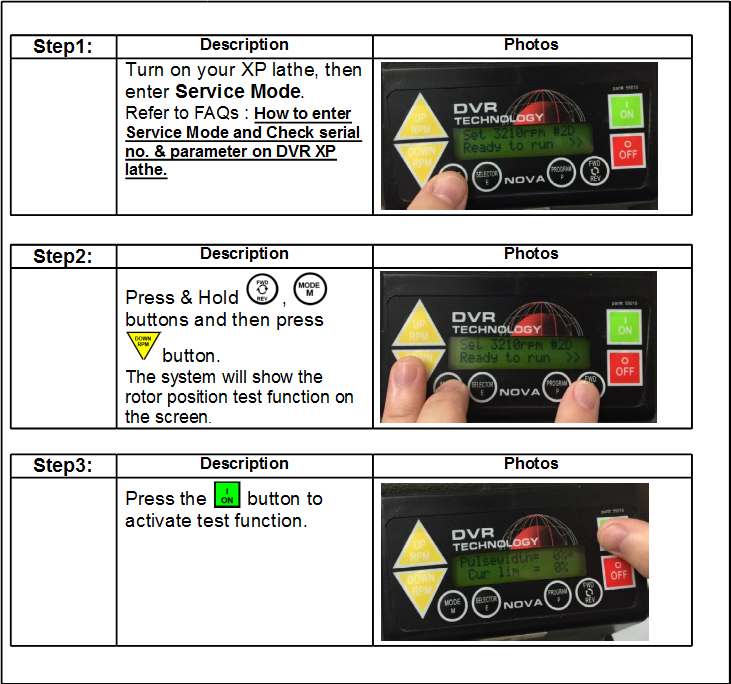

Once in the Service Mode follow the below instructions.

pdf

(315 KB)
